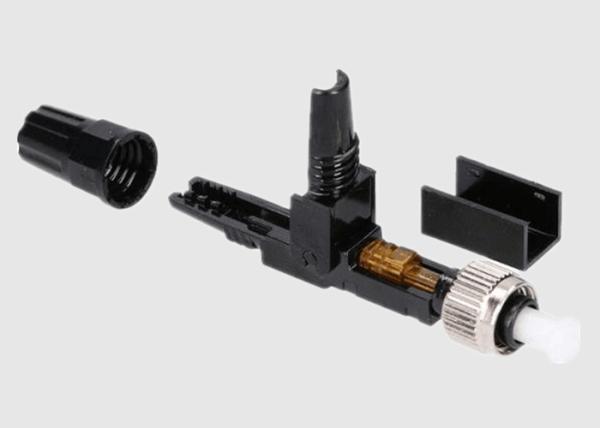

0.9mm Fiber Optic Quick Connector

  • 1
  • 2
  • 3

Brand Name : Wuhan Geehe

Model Number : GH-FC-LC-0016

Certification : ISO9001:2015,ISO14001:2015,UL

Place of Origin : Hubei,China

MOQ : 300 pcs

Price : Negotiation

Payment Terms : T/T, D/P, D/A, Western Union, MoneyGram,LC

Supply Ability : 8,000 pcs per day

Delivery Time : Within 3-5 working days after confirm order

Packaging Details : Plastic box per pc with Pressure defense sponge, outer carton

Model Name : Fiber Optic Quick Connector

Connector Type : SC/FC/LC/ST/MTRJ/MU/MPO Ect

Ferrule End-face : PC,UPC,APC

Fiber Type : Singlemode, Multimode

Color : Blue,Green,Grey,Aqua,Purple etc

Cable Applicable : 3.1 x 2.0 mm drop cable

Installation Time : Within 60s ( No fiber cut )

Sleeve : Caremic/Phosphor Bronze

Contact Now

FC PC Simplex Single Mode Metal 0.9mm Fiber Optic Quick Connector

Brief Introduction:

Optional FC/PC-connectors can be mounted to our fiber-optic products. The multimode FC/PC connectors have an extremely low insertion loss of < 0.2 dB. The FC/PC connector cannot rotate, always mounts into the same fixed position and therefore has a high reproducibility.

The type of connector used on the fiber may be defined by the equipment that you are connecting with. Care should be taken

to ensure you have the correct connector specified.

Fiber Optic connectors Features and Advantages:

  • Low Insertion Loss and high Return Loss ca-pability;

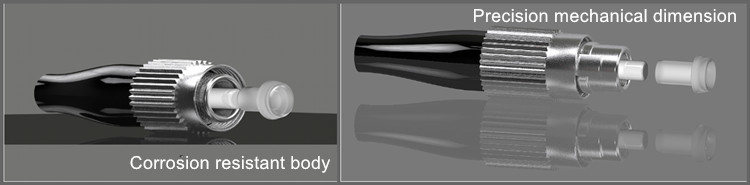

  • Precision anti rotation key for mechanical stability / repeatability;
  • Nickel plated metal body corrosion resistant;
  • Zirconia ceramic ferrule available in several;
  • RoHS materials, REACH SvHC compliant;
  • Individual parts packed in bulk package.

0.9mm Fiber Optic Quick Connector

Application of FC Connector :

  • Telecommunication networks;
  • Local area networks;
  • Data processing networks;
  • Distribution application;Premises distribution;
  • Test and laboratory equipment

0.9mm Fiber Optic Quick Connector

Technology Specification& Parameters:

Parameter Unit Index
End-Face Type PC UPC APC
IL dB SM: ≤0.3；MM ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
RL SM dB ≥50 ≥50 ≥50
MM dB ≥36(Exclusive APC Connector)
Mating Times ＞1000
Operating Temperature ℃ -40~ +80

Order Information:

OFC -X -XX -XX -XX -X -X
S: Simplex
D: Duplex		 FA:FC/APC FC:FC/UPC FP:FC/PC FA:FC/APC FC:FC/UPC FP:FC/PC 09:0.9mm 20:2.0mm 30:3.0mm 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others 0.5:0.5m
1.0:1.5m
10:10.0m
Fiber Mode Connector Type Connector Type Cable Diameter Fiber Type Fiber Length

More fibre optic connector types:

0.9mm Fiber Optic Quick Connector
